THR-EC3816T Extra-Large Tilt Mount (40" - 100")

Stanley

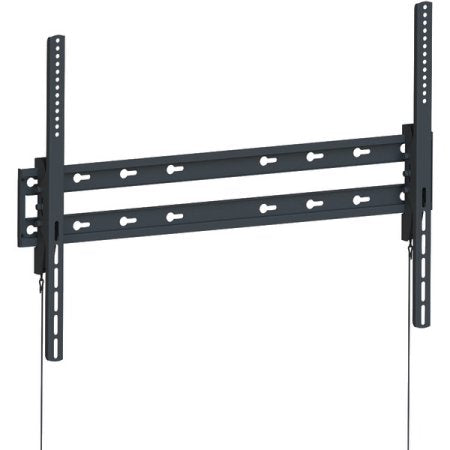

THR-EC3816T Extra-Large Tilt Mount (40" - 100")
The STANLEY® THR-EC3816T Tilt Mount is for larger Flat Panel TVs. The THR-EC3816T Tilt mounting system features a slim and sleek design for a clean and low profile appearance. With only a 2.7” depth from the TV to the wall, it saves space in the room and is a safe way to display your TV while providing an optimal viewing angle.

Product Features
• Designed and built for larger screens, while providing a low profile and easy to release secure solution.
• Configured to 16” and 24” Stud Systems for secure installation.
• Large wall bracket for accommodating wiring and power access behind the TV.
• Features several state of the art safety, security and adjustment features.
• High performance and an affordable price.
• Made of high quality steel for ultimate rigidity and long lasting performance.
• The STANLEY®: “Magnetic Tab” system gives users quick access to the release mechanism without having cables, wires or strings hanging from the back of the TV.
• The “Click and Release” system permits easy access to the rear of the TV without special tools while securely affixing the TV to the wall.

Product Specifications
• Weight Capable: 150 lbs / 68 kg
• TV Size: 40” – 100”
• Depth: 2.7”
• Tilt Amount: +7˚ to -7˚
• Swivel: None
• Extension: None
• Level Correction: None
• Mounting Pattern: 200 x 200 up to 800 x 600

Technical Data
Suncraft Model#: THR-EC3816T
Country of Origin: China
Color/Finish: Black/Matte
Product Net Weight: 9.8 lbs / 4.5 kg
Inner Box Size: (LxWxH): 36.4 x 6.4 x 3.5 in / 93 x 16.3 x 8.9 cm
Master Carton Size: (LxWxH): 37 x 14.5 x 7.5 in / 94 x 36.9 x 19.1 cm
Master Carton Net Weight:   41.6 lbs / 18.9 kg
Products Per Master Carton: 4
Master Cartons Per Pallet: 15

Box Contents
Universal Adapter: QTY: 0
Monitor Plate: QTY: 2
Full Motion Arm: QTY: 0
Wall Rail QTY: 1
Wall Rail Cover: QTY: 2
Cable Cover: QTY 0
Mount Installation Kit: QTY: 1
Panel Attachment Kit: QTY: 1
Installation Template: QTY: 0
Instruction Manual: QTY: 1

Installation Guide
Instruction Manual QTY: 1
A (Wall Plate) QTY: 1
B (TV Brackets) QTY: 2
C (Bubble Level) QTY: 2
A1 (M4x25) QTY: 4
A2 (M5x25) QTY: 4
A3 (M6x25) QTY: 4
A4 (M8x25) QTY: 4
A5 (Spacers) QTY: 4
A6 (Washers) QTY: 4
B1 (Wall Screws) QTY: 4
B2 (Wall Anchors) QTY: 4
B3 (Washers) QTY: 4

    Installation Guide    &   Measurements
