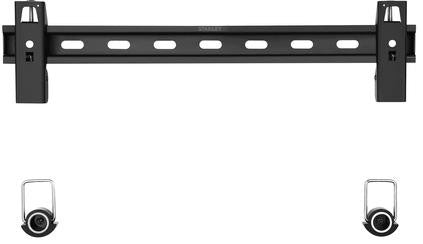

TLS-200S Large Fixed TV Mount (40" - 65")

Stanley

TLS-200S Large Fixed TV Mount (40" - 65")
The STANLEY® TLS-200S Fixed Mount is for large size Flat Panel TVs. The TLS-200S fixed mounting system features a slim and sleek design for a clean and low profile appearance.

​Product Features
• Designed and built for larger screens, while providing a low profile and easy to release secure solution.
• Features several state of the art safety, security and adjustment features.
• High performance and an affordable price.
• Made of high quality steel for ultimate rigidity and long lasting performance.
• Built in Kickstands providing convenient access to the back of the TV for cable hook-up.
• The STANLEY®: “Magnetic Tab” system gives users quick access to the release mechanism without having cables, wires or strings hanging from the back of the TV.

​Product Specifications
• Weight Capable: 100 lbs / 45 kg
• TV Size: 40” – 65”
• Depth: 1”
• Tilt Amount: None
• Swivel: None
• Extension: None

• Mounting Pattern: 200 x 100 up to 600 x 400

Technical Data
Suncraft Model#: TLS-200S
Country of Origin: China
Color/Finish: Black/Matte
Product Net Weight: 2.7 lbs / 1.2 kg
Inner Box Size: (LxWxH):  26.5 x 4 x 1.4 in / 67.4 x 10.2 x 3.6 cm
Master Carton Size: (LxWxH): 27 x 7 x 9 in / 68.6 x 17.8 x 22.9 cm
Master Carton Net Weight: 27.5 lbs / 12.5 kg
Products Per Master Carton: 10
Master Cartons Per Pallet: 30
QTY Per 20’ Container: 14000
QTY Per 40’ Container (HQ): 18000

Box Contents
Instruction Manual QTY: 1
A (Wall Plate) QTY: 1
B (Monitor Bracket) QTY: 2
C (TV Anchor w/ Stand) QTY: 2
A1 (M4x25) QTY: 4
A2 (M4x25) QTY: 4
A3 (M4x25) QTY: 4
A4 (M4x25) QTY: 4
A5 (Spacers) QTY: 4
A6 (Washers) QTY: 4
B1 (Wall Screws) QTY: 2
B2 (Wall Anchors) QTY: 2
B3 (Washers) QTY: 2



    Installation Guide    &   Measurements



Watch product Video
