TLX-105FM Large Full Motion TV Mount (37" - 70")

Stanley

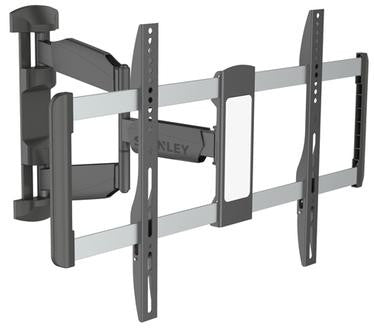

TLX-105FM Large Full Motion TV Mount (37" - 70")
The STANLEY® TLX-105FM Full Motion Articulating Mount is designed for larger sized but lighter weight Flat Panel TVs. The TLX-105FM Full Motion mounting system features a slim and sleek design for a clean and low profile appearance.

Product Features
• Simple and easy to install and operate.
• Accommodates today’s large LED/LCDs that are lighter in weight.
• Offers full motion capabilities for a large number and sizes of TVs.
• Features several state of the art safety and security features.
• Integrated Cable Management for clean install and appearance.
• High performance for an affordable price.

Product Specifications
• Weight Capable: 80 lbs / 36 kg
• TV Size: 37” – 70”
• Depth: 2.1”
• Tilt Amount: +5˚ to -20˚
• Swivel: 180°
• Extension: 19”
•  Mounting Pattern: 200 x 200; 300 x 300; 400 x 200; 400 x 400; 600 x 400


Technical Data
TLX-105FM
Country of Origin: China
Color/Finish: Black/Matte
Product Net Weight:15.3 lbs / 6.9 kg
Inner Box Size: (LxWxH): 32.8 x 19.3 x 3.2 in / 83.4 x 49.1 x 8.2 cm
Master Carton Size (LxWxH): 33.5 x 19.9 x 10.2 in / 85.09 x 50.55 x 25.9 cm

Box Contents
Instruction Manual QTY: 1
A QTY:2
B QTY:1
C QTY:1
D QTY:1
E (TV Rails and Tools) QTY:1
B1 (M5x14) QTY: 4
C1 (M6x14) QTY: 4
D1 (M8x30) QTY: 4
C3 (M6x30) QTY: 4
D2 (M8x50) QTY: 4
F1 (Spacers) QTY: 8
F2 (Spacers) QTY: 8
H1 (Wall Screws) QTY: 4
I1 (Wall Anchors) QTY: 4
G2 (Washers) QTY: 4
J1 (Washers) QTY: 4




    Installation Guide    &   Measurements
