TV Wall Mounts

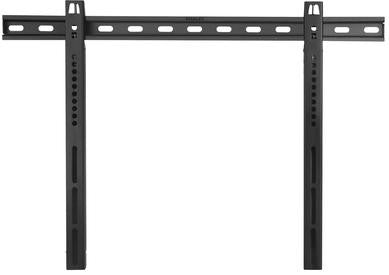

TLS-210S Large Fixed TV Mount (40" - 65")

Stanley

TLS-210S Large Fixed TV Mount (40" - 65")
The STANLEY® TLS-210S Fixed Mount is for large size Flat Panel Tvs. The TLS-210S fixed mounting system features a slim and sleek design for a clean and low profile appearance.

Product Features
• Designed and built for larger screen, while providing a low profile and easy to release secure solution.
• Features several state of the art safety, security and adjustment features.
• High performance for an affordable price.
• The STANLEY®: “Magnetic Tab” system gives users quick access to the release mechanism without having cables, wires or strings hanging from the back of the TV.
• The “Click and Release” system permits easy access to the rear of the TV without special tools while securely affixing the TV to the wall.
• Built in kickstands provide convenient access to the back of the TV for cable hook-up.

Product Specifications
• Weight Capable: 110 lbs / 50 kg
• TV Size: 40” – 65”
• Depth: 1”
• Tilt Amount: None
• Swivel: None
• Extension: None
• Mounting Pattern: 200 x 100 up to 600 x 400

Technical Data
Suncraft Model#: TLS-210S
Country of Origin: China
Color/Finish: Black/Matte
Product Net Weight: 3.8 lbs / 1.7 kg
Inner Box Size: (LxWxH): 26.5 x 4.3 x 1.5 in / 67.2 x 11 x 3.9 cm
Master Carton Size: (LxWxH): 27.3 x 8.3 x 9.3 in / 69.4 x 21.1 x 23.7 cm
Master Carton Net Weight: 40 lbs / 18 kg
Products Per Master Carton: 10
Master Cartons Per Pallet: 24
QTY Per 20’ Container: 4680
QTY Per 40’ Container (HQ):10400

Box Contents
Instruction Manual QTY: 1
A (Wall Plate) QTY: 1
B (TV Rails) QTY: 2
A1 (M4x25) QTY: 4
A2 (M4x25) QTY: 4
A3 (M4x25) QTY: 4
A4 (M4x25) QTY: 4
A5 (Spacers) QTY: 4
A6 (Washers) QTY: 4
B1 (Wall Screws) QTY: 4
B2 (Wall Anchors) QTY: 4
B3 (Washers) QTY: 4


    Installation Guide    &   Measurements



Watch product Video
