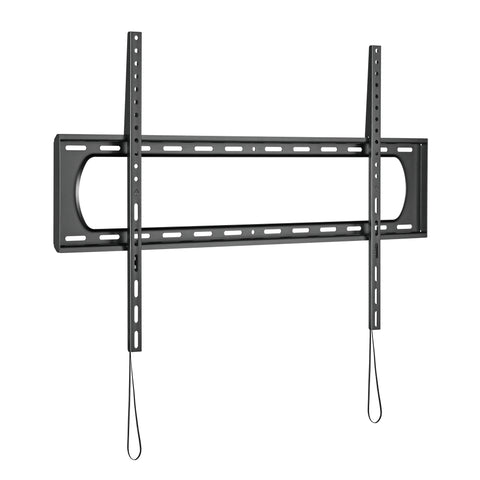

Product Features
• Designed and built for larger screens, while providing a low profile and easy to release secure solution.
• Configured to 16” and 24” Stud Systems for secure installation.
• Large wall bracket for accommodating wiring and power access behind the TV.
• Features several state of the art safety, security and adjustment features.
• High performance and an affordable price.
• Made of high quality steel for ultimate rigidity and long lasting performance.
• The “Click and Release” system permits easy access to the rear of the TV without special tools while securely affixing the TV to the wall.
Product Specifications
• Weight Capable: 264 lbs / 120 kg
• TV Size: 60” – 120”
• Depth: 1.4”
• Tilt Amount: None
• Swivel: None
• Extension: None
• Level Correction: None
• Mounting Pattern: up to 900 x 600
Technical Data
Suncraft Model#: TLH-120F
Country of Origin: China
Color/Finish: Black/Matte
Product Net Weight: 7 lbs / 3.2 kg
Inner Box Size: (LxWxH): 40.35 x 9.84 x 1.81 in / 102.5 x 25 x 4.6 cm
Master Carton Size: (LxWxH): 41.14 x 9.84 x 8.07 in / 104.5 x 25 x 20.5 cm
Master Carton Net Weight: 35.5 lbs / 16.1 kg
Products Per Master Carton: 4
Master Cartons Per Pallet: 20
Box Contents
TV Plate: QTY: 2
Wall Plate QTY: 1
Mount Installation Kit: QTY: 1
Instruction Manual: QTY: 1
Technical Data
Suncraft Model#: TLH-120F
Country of Origin: China
Color/Finish: Black/Matte
Product Net Weight: 7 lbs / 3.2 kg
Inner Box Size: (LxWxH): 40.35 x 9.84 x 1.81 in / 102.5 x 25 x 4.6 cm
Master Carton Size: (LxWxH): 41.14 x 9.84 x 8.07 in / 104.5 x 25 x 20.5 cm
Master Carton Net Weight: 35.5 lbs / 16.1 kg
Products Per Master Carton: 4
Master Cartons Per Pallet: 20
Box Contents
TV Plate: QTY: 2
Wall Plate QTY: 1
Mount Installation Kit: QTY: 1
Instruction Manual: QTY: 1
Installation Guide
Instruction Manual QTY: 1A (Wall Plate) QTY: 1
B (TV Brackets) QTY: 2
M-A (M6x14) QTY: 4
M-B (M8x16) QTY: 4
M-C (M6x30) QTY: 4
M-D (M8x35) QTY: 4
M-E (Washers) QTY: 4
M-F (Spacers) QTY: 4
M-G (Spacers) QTY: 4
W-A (Lag Bolts) QTY: 6
W-B (Wall Anchors) QTY: 6
W-C (Washers) QTY: 6
C (Bubble Level) QTY: 1
Installation Guide & Measurements
