TV Wall Mounts

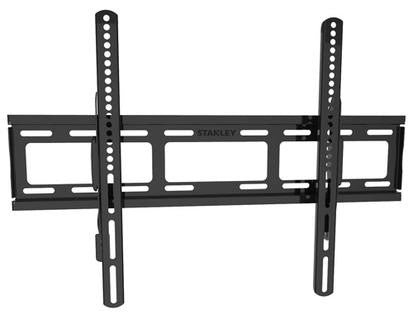

TLR-EC3215T Premium Large Tilt TV Mount (37" - 70")

Stanley

TLR-EC3215T Premium Large Tilt TV Mount (37" - 70")
Stanley, the hardware of choice for Architects, Contractors, and Home Owners for its quality, performance and dependability now offers a premium mount that easy to install. Designed and built for today’s screens while providing a low profile and easy to release secure solution.

Product Features
• Features several state of the art safety and security features.
• High performance and an affordable price.
• Made of high quality steel for ultimate rigidity and safety.
• Tilting Mount for Medium Size Flat Panel TVs
• Capability of handling 110 lbs​​
• Provides 16 degrees of tilt along with easy and safe access ​to the rear of the TV.

Product Specifications
• Weight Capable: 110 lbs / 50 kg
• TV Size: 37” – 70”
• Depth: 2.4”
• Tilt Amount: +4˚ to -12˚
• Mounting Pattern: 100 x 100 up to 600 x 400

Technical Data
Suncraft Model#: TLR-EC3215T
Country of Origin: China
Color/Finish: Black/Matte
Product Net Weight: 5.6 lbs / 2.5 kg
Inner Box Size: (LxWxH): 26.3 x 6.2 x 2.8 in / 66.8 x 15.8 x  7.2 cm
Master Carton Size: (LxWxH): 27 x 9.3 x 13 in / 68.6 x 23.7 x 33.1 cm

Box Contents
Instruction Manual QTY: 1
A (Wall Plate) QTY: 2
B (Right Bracket) QTY: 1
C (Left Bracket) QTY: 1
A1 (M4x25) QTY: 4
A2 (M5x25) QTY: 4
A3 (M6x25) QTY: 4
A4 (M8x25) QTY: 4
A5 (Spacers) QTY: 4
A6 (Washers) QTY: 4
B1 (Wall Screws) QTY: 4
B2 (Wall Anchors) QTY: 4
B3 (Washers) QTY: 4



    Installation Guide    &   Measurements
