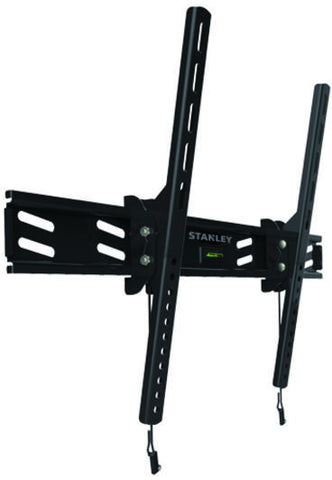

TLR-EC3211T DIY Basics Large Size Tilt TV Mount (32" - 70")


TLR-EC3211T DIY Basics Large Size Tilt TV Mount (32" - 70")
Stanley, the hardware of choice for Architects, Contractors, and Homeowners for its quality, performance and dependability now offers a premium mount that is easy to install.
Designed and built for today’s screens while providing a low profile and easy to release secure solution.

Product Features
• Designed and built for large screens, but with the ability to tilt easily.
• Capability of handling TVs weighing up to 85 lbs
• Features several state of the art safety and security features
• Provides 12 degrees of tilt down
• Made of high quality steel for ultimate rigidity and long ​lasting performance.
• The Magnet Tab system gives users quick access to the release mechanism without having cables, wires or strings hanging from the back of the TV.
• The Click and Release system permits easy access to the rear of the TV without special tools while securely affixing the TV to the wall.

Product Specifications
• Weight Capable: 85lbs / 38kg
• TV Size: 32” – 70”, ; Universal
• Depth: 2.3”
• Tilt Amount: +5˚ to -12˚
• VESA Pattern 100 x 100 up to 600 x 400

Technical Data
Model#: TLR-EC3211T
Country of Origin: China
Color/Finish: Black/Matte
Product Net Weight: 2.20 kg/4.9 lbs
Inner Box Size: (LxWxH): 27.9 x 3.4 x 2.8 in / 70.9 x 8.7 x 7.2 cm
Master Carton Size (LxWxH): 27.5 x 8.8 x 7.5 in / 69.9 x 22.4 x 19.1 cm
Products Per Master Carton: 6
Master Cartons Per Pallet: 30

Box Contents
Instruction Manual QTY: 1
A (Wall Plate) QTY: 2
B (Left TV Bracket) QTY: 1
C (Right TV Bracket) QTY: 1
A1 (M4x25) QTY: 4
A2 (M4x25) QTY: 4
A3 (M4x25) QTY: 4
A4 (M4x25) QTY: 4
A5 (Spacers) QTY: 4
A6 (Washers) QTY: 4
B1 (Wall Screws) QTY: 4
B2 (Wall Anchors) QTY: 4
B3 (Washers) QTY: 4
C1 (Tension Knob) QTY: 1

    Installation Guide    &   Measurements
